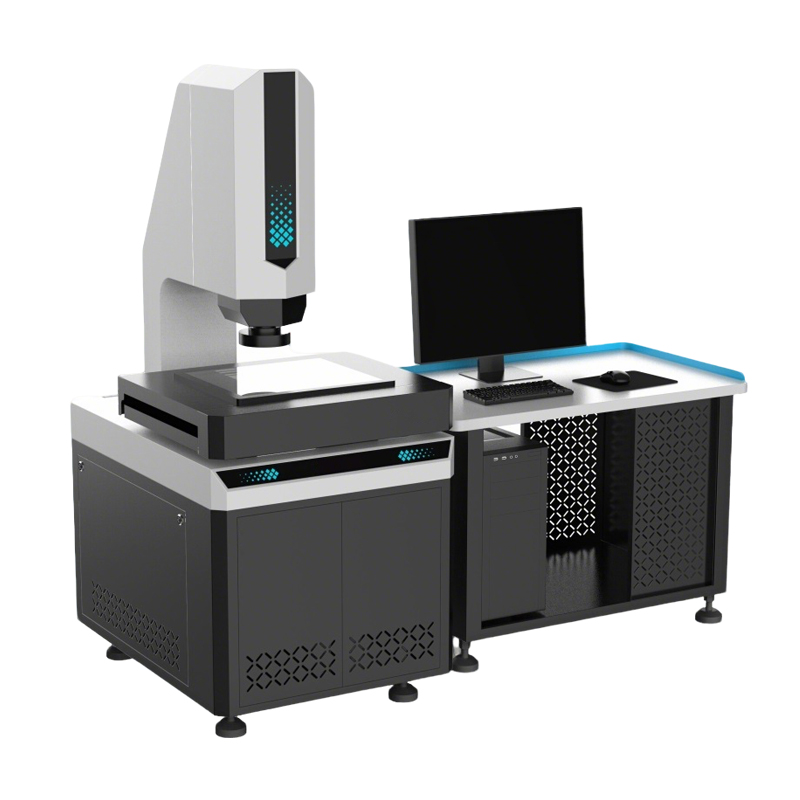

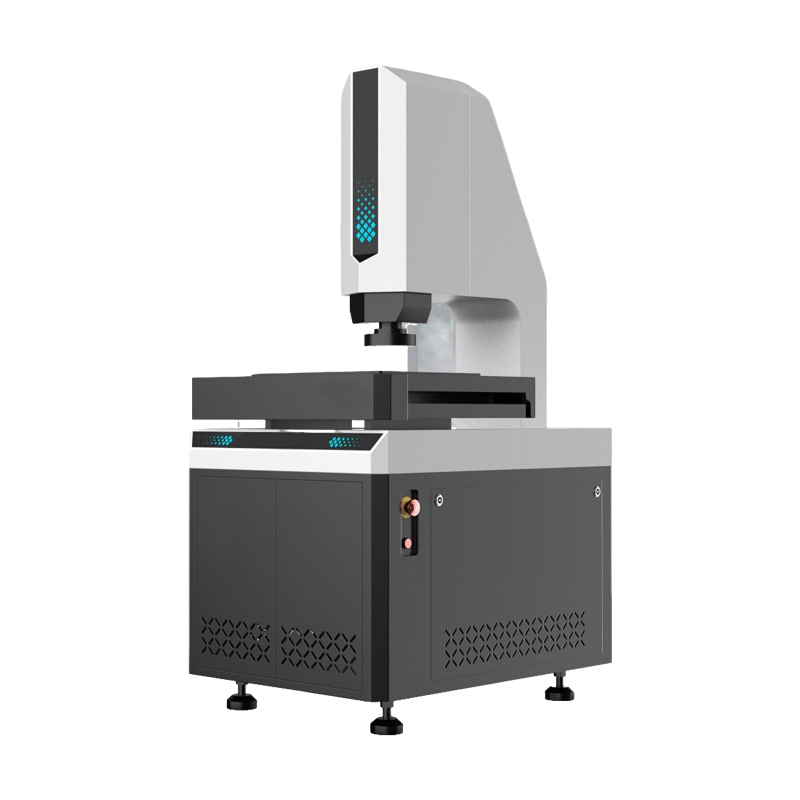

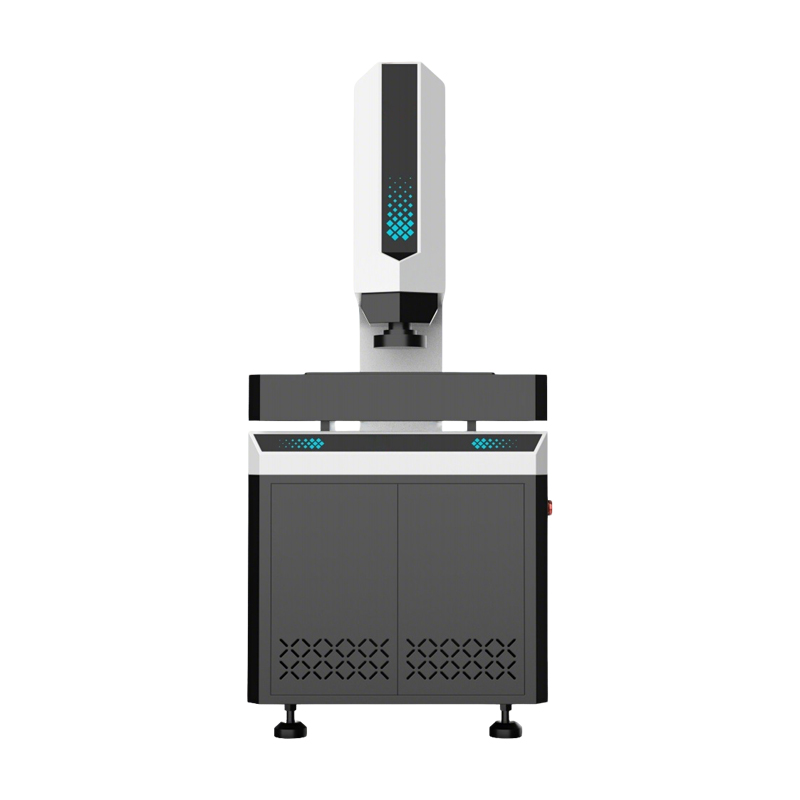

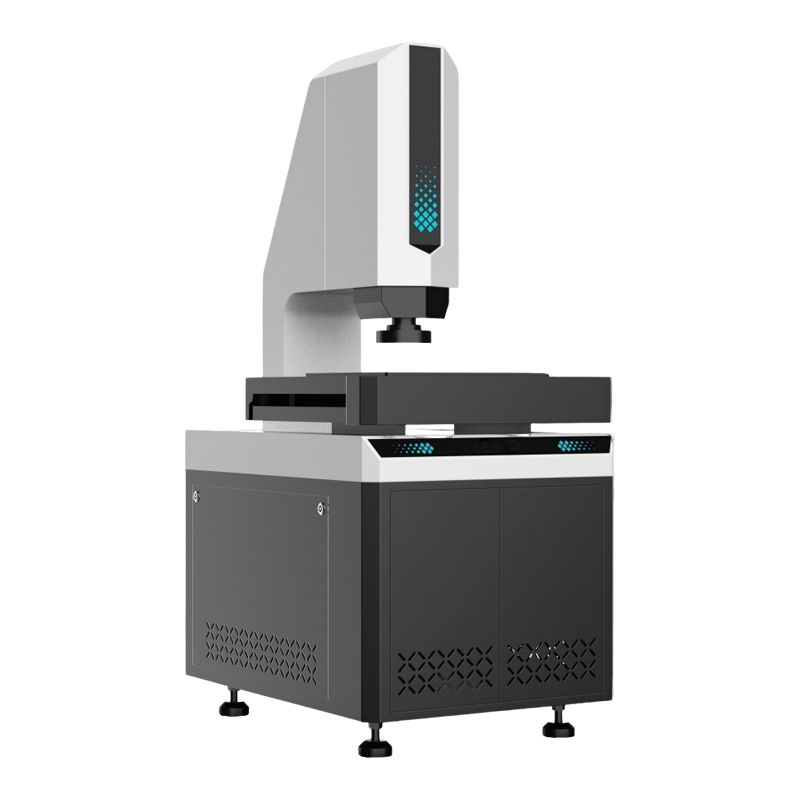

The HD-U series intelligent high-precision optical inspection instrument is used in multiple fields such as 3C, military, and aviation. It adopts a brand-new optical and dual-image system, which combines flash measurement and high-precision measurement functions. It is equipped with AI and automatic zoom lens and other technologies. The software has powerful functions, supports non-reference inspection, and can be expanded to 3D inspection, which greatly improves inspection efficiency and accuracy.
The website only displays some products, more products can be inquired about. Accurately recommend products based on your needs and support customization!
|
Model |
HD-432U |
|
|
CCD |
Two 5M ultra-high-definition industrial digital cameras |
|
|
Lens |
Double rate double telecentric lens 13.1:1 auto zoom coaxial lens |
|
|
Light source system |
Surface lights, bottom contour lights and coaxial lights are standard. |
|
|
XY Range |
400*300mm |
|
|
Z-axis working distance |
200mm |
|
|
FOV |
Large field of view mode |
42*35mm |
|
High precision mode |
0.71*0.54-9.5*7.13mm |
|
|
Load-bearing capacity |
25KG |
|
|
Repeatability accuracy |
Large field of view mode without stitching |
±2μm(Repeat accuracy without moving the platform) |
|
Stitched large field of view mode |
±5μm(Repeatability after moving the platform) |
|
|
High precision mode without stitching |
±2μm(Repeat accuracy without moving the platform) |
|
|
Stitched high precision mode |
±3μm(Repeatability after moving the platform) |
|
|
Measurement accuracy |
Large field of view mode without stitching |
±5μm (Measurement accuracy without moving the platform) |
|
Stitched large field of view mode |
±(5+L/200)μm (Measurement accuracy after moving the platform) |
|
|
High precision mode without stitching |
±2μm (Measurement accuracy without moving the platform) |
|
|
Stitched high precision mode |
±(2+L/200)μm (Measurement accuracy after moving the platform) |
|
|
Measurement software |
AI-CNC |
|
|
Measurement mode |
It can switch between 2 different fields of view arbitrarily, and can measure single or multiple products at the same time. |
|
|
Operating environment |
Temperature: 22℃±3℃ Humidity: 50～70% Vibration: <0.002mm/s, <15Hz |
|
|
Monitor |
Philips 27” |
|
|
Main frame |
Intel i7+16G+500G |
|
|
Power supply |
AC 110-240V,50/60HZ |
|
|
Warranty |
12 months |
|
I. Industry Applications of the HD-U Series Intelligent High-Precision Optical Inspection Instrument
Industry Applications: The HD-U intelligent high-precision optical inspection instrument is widely used in 3C, mold, hardware, plastics, electronics, cutting tools, die-cutting, circuit boards, semiconductors, medical devices, machining, smart wearables, aerospace, and military industries.
II. Core Technologies:
2.1 A brand-new optical design scheme breaks through the traditional limitations of optical image measurement. The dual-image vision system enables a wider measurement range. 2.2 It simultaneously features a wide-field-of-view one-click quick measurement function and a high-magnification, high-precision fully automatic image measurement function, which can improve measurement efficiency by a hundredfold and complete high-precision measurements.
2.3 Optional flying image and AI automatic measurement technology can be equipped to complete 100% fully automatic product measurement through artificial intelligence deep learning.
2.4 The wide-field-of-view combined with dual telecentric low-magnification lenses can replace the one-click quick measurement function for small products, and provide rapid measurement capabilities for large products.
2.5 The high magnification combined with a high-definition automatic zoom coaxial lens exceeding 13.3:1 and multi-angle 8-zone 6-ring LED light source illumination results in higher image edge contrast, more accurate automatic edge finding, and a higher degree of automatic measurement.
2.6 The AI-CNC intelligent measurement software is incredibly powerful. In addition to general image measurement functions, it also features one-click positioning, automatic product identification and matching, simultaneous measurement of multiple products, batch measurement of products, out-of-tolerance retesting, and a human-machine interface for communication with external devices. 2.6 The HD-U intelligent high-precision optical inspection instrument features reference-free inspection capabilities. For irregularly shaped or thin products where fixtures cannot be fabricated, it can quickly and automatically position and measure, completely eliminating the need for fixture arrangement, reducing inspection hassles, and lowering measurement costs.
2.7 Powerful vision and software functions significantly improve the automatic inspection rate, reducing manual workload and the error rate. It also features review and retesting functions, allowing for retesting of each element's edge. Furthermore, it has strong human-machine interaction capabilities, providing command prompts during measurement, such as workpiece flipping, product replacement, text and image prompts, etc., preventing mistaken operation and reducing worker errors.
2.8 The HD-U intelligent high-precision optical inspection instrument can be equipped with a laser system and a 3D probe system for docking, enabling simultaneous and rapid 2D and 3D inspection of products.
